DRUM & IBC SPILL CONTAINMENT
Bunded Pallets for Drum and IBC Spill Containment
Choose a bunded pallet around the containers, liquid and handling method at your site. Trade Enviro supplies 2-drum, 4-drum, single-IBC and double-IBC configurations with quoted availability and Australia-wide freight.
Four verified configurations
Choose from 2-drum, 4-drum, single-IBC and double-IBC spill pallets.
Containment and load data
Compare the confirmed footprint, containment capacity and product load rating.
SDS and handling check
Confirm the liquid, handling arrangement and site conditions before ordering.
Quote, freight and availability
Send your quantity and delivery postcode for current price and availability.
CHECK PRICE & AVAILABILITY
Confirm the right spill pallet before ordering
Send your container type, quantity, liquid SDS, delivery postcode and required date. We’ll confirm the right configuration, price, freight and expected despatch timing.
Trusted by organisations across Australia
Compare dimensions, capacity and load ratings
| Configuration | Dimensions L × W × H | Sump capacity | Static load | Dynamic load | Pallet weight |
|---|---|---|---|---|---|
| 2 Drum | 1,300 × 680 × 450 mm | 205 L | 2,000 kg | 1,000 kg | 24 kg |
| 4 Drum | 1,300 × 1,300 × 300 mm | 260 L | 2,700 kg | 1,200 kg | 36 kg |
| Single IBC | 1,300 × 1,300 × 900 mm | 1,300 L | 3,000 kg | Not specified | 75 kg |
| Double IBC | 2,200 × 1,300 × 500 mm | 1,100 L | 4,000 kg | Not specified | 102 kg |
Sump capacity describes liquid containment. Load ratings describe supported weight; they are separate selection criteria. Do not use a static rating as a movement rating. Confirm filled container weights and the intended handling method before ordering.
Choose the right spill pallet configuration

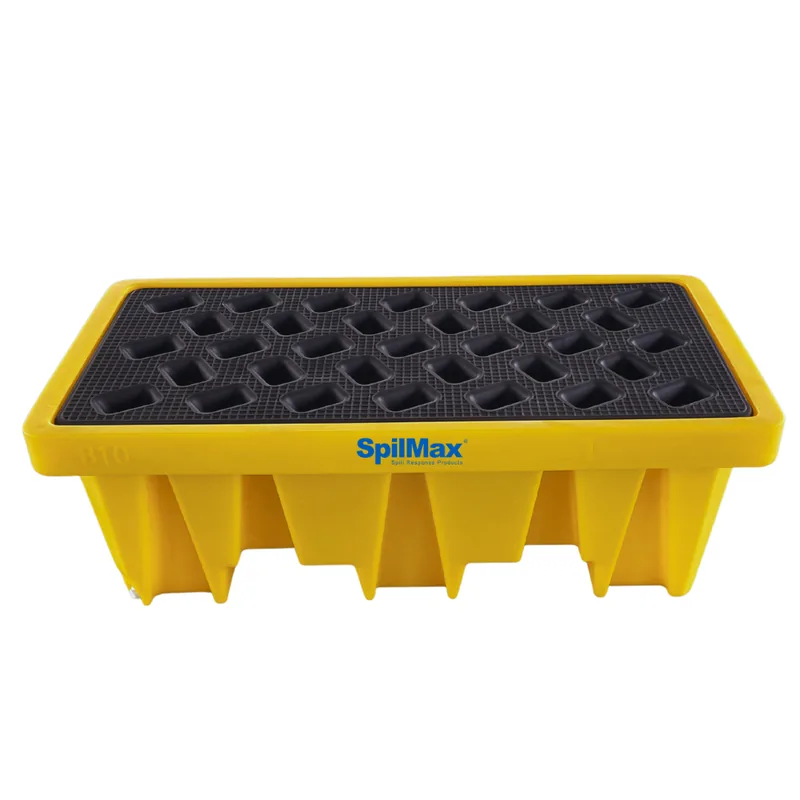

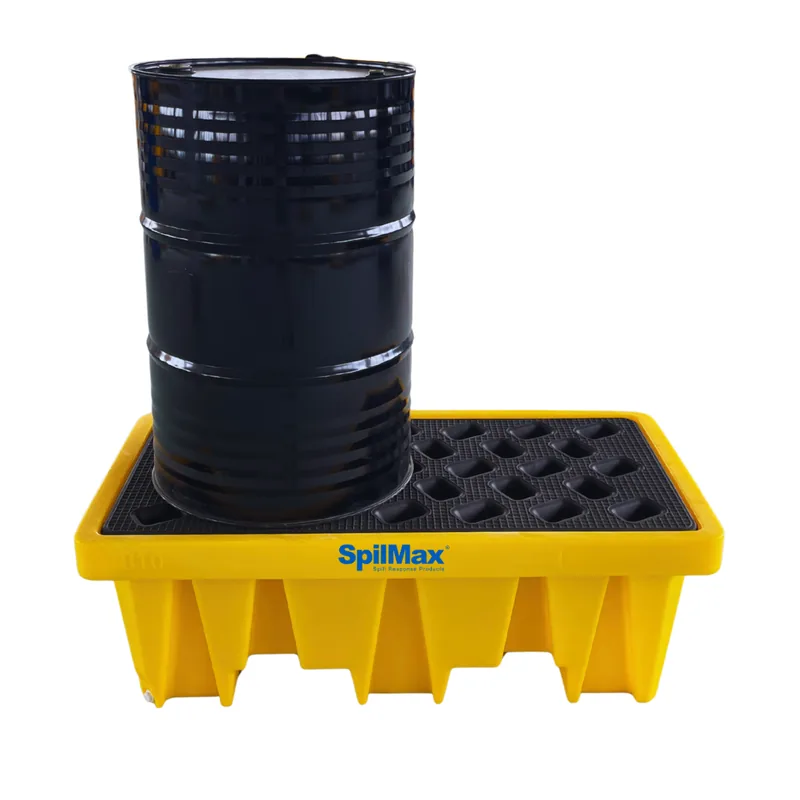

2 Drum Spill Pallet — CHPSB05
205 L containment; 1.3 m × 680 mm × 450 mm; 2,000 kg static / 1,000 kg dynamic load. Suitable where two drums need a compact, forkliftable containment pallet with a removable grate.

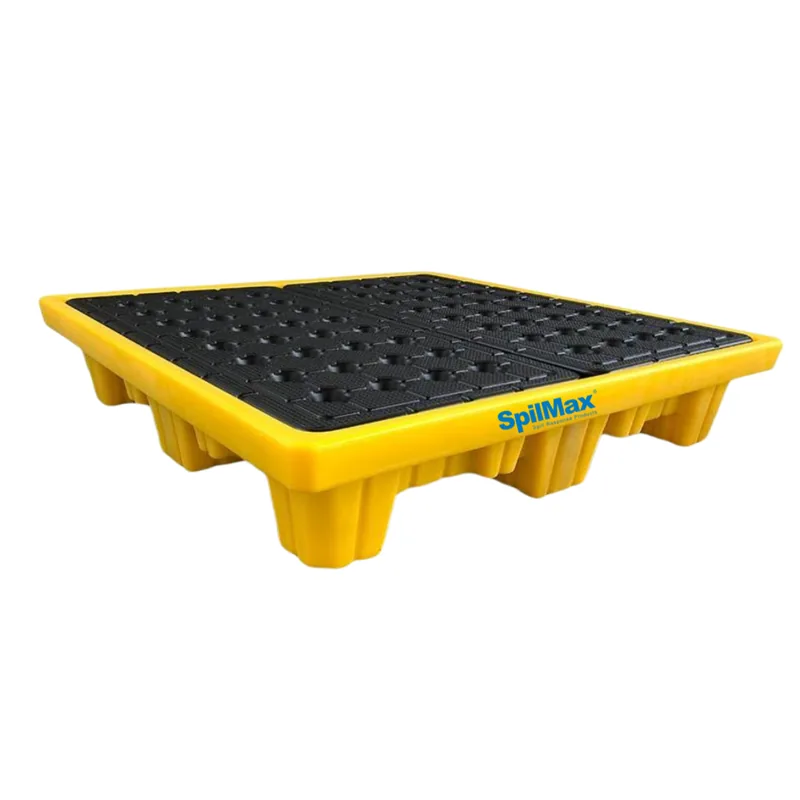

4 Drum Spill Pallet — CHPSB02
260 L containment; 1.3 m × 1.3 m × 300 mm; 2,700 kg static / 1,200 kg dynamic load. Suitable where four drums need consolidated secondary containment and forklift handling.

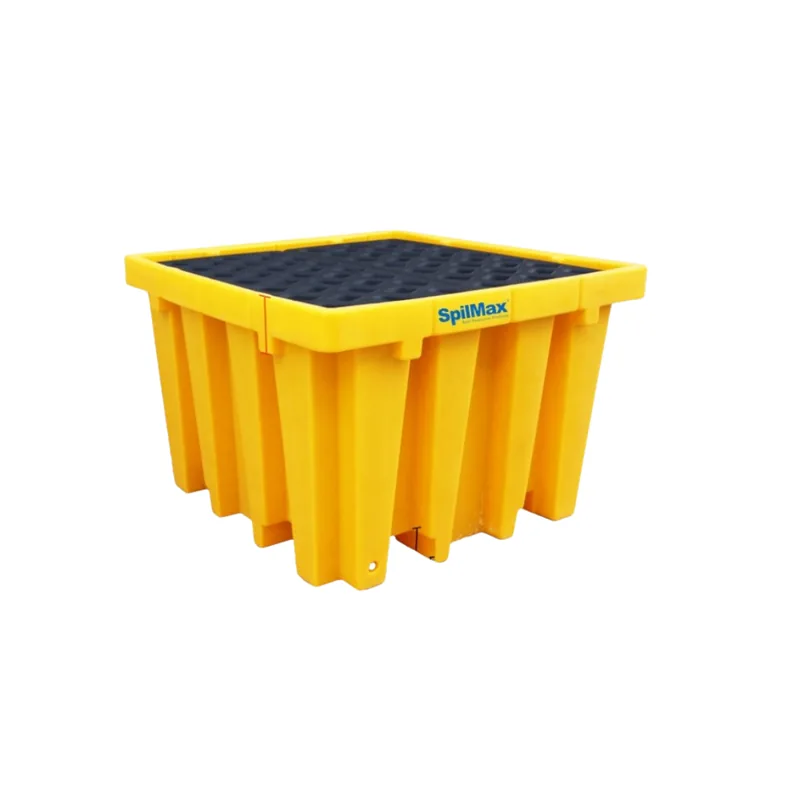

Single IBC Spill Pallet — CHPSB01
1,300 L containment; 1.3 m × 1.3 m × 900 mm; 3,000 kg static load. Suitable for one IBC where contained storage and access for cleaning are required.

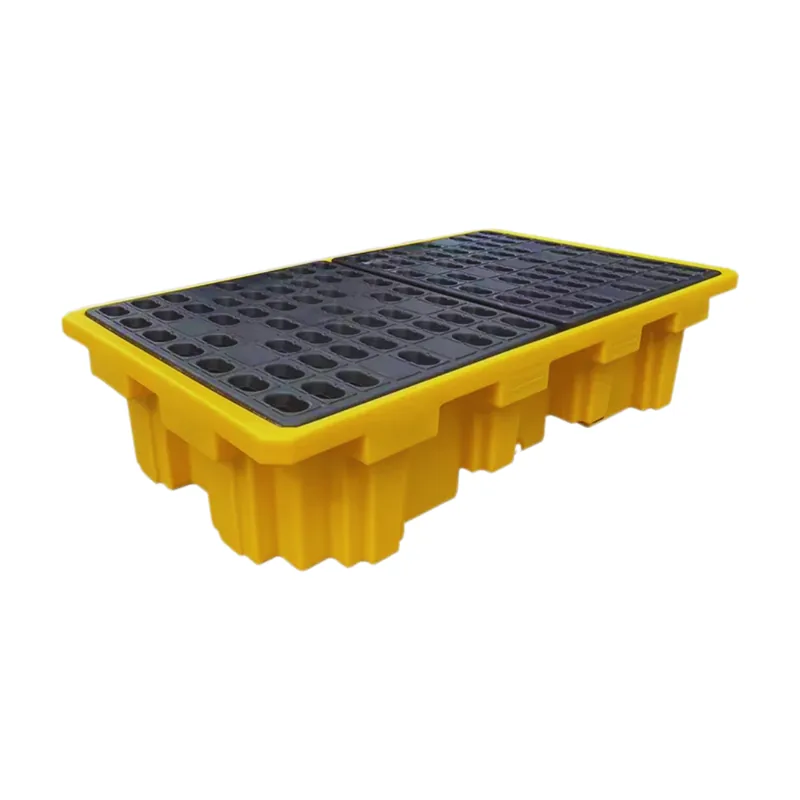

Double IBC Spill Pallet — CHPSB03
1,100 L containment; 2.2 m × 1.3 m × 500 mm; 4,000 kg static load. Suitable for two IBCs where the footprint, site access and containment arrangement have been confirmed.
Check these details before selecting a pallet
Select the pallet around your containers, liquid and handling arrangement. A higher container count does not necessarily mean a larger containment sump.
- Containers and footprint — Tell us whether you are storing drums or IBCs, their dimensions, quantity and filled weight. Check pallet height as well as floor space and dispensing access.
- Liquid and containment — Provide the liquid name and current SDS, together with any containment requirement specified for your site. Container count alone does not establish sump capacity.
- Handling — Confirm whether the pallet will be handled empty or loaded, the equipment used and the relevant product rating. Forklift access alone is not a loaded-movement rating.

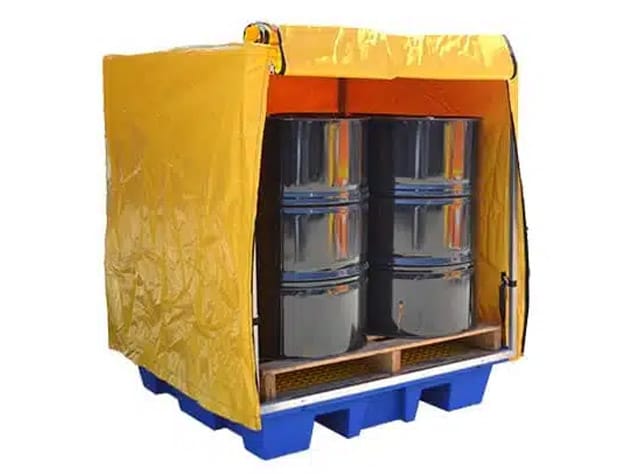

- Location and exposure — Tell us whether storage is indoors, under cover or exposed to weather. Ask about cover or enclosure requirements separately.
- Required date and delivery — Include the delivery postcode, required date and any unloading or access constraints.
Send your preferred pallet configuration, quantity, delivery postcode and required date. We will confirm price, availability, freight and expected despatch timing with your quote.
Setup, access and handling
- Check the pallet dimensions against the available floor space and the overall height needed for storage or dispensing.
- Confirm filled container weights against the applicable product rating before ordering.
- Confirm the intended empty or loaded handling arrangement. No dynamic rating is specified for the single-IBC or double-IBC models.
- Removable grating provides access to the sump. Ask about cleaning and maintenance requirements for the liquid stored.
Material and chemical suitability
- Rotomoulded LLDPE construction across the four listed configurations.
- Removable grating provides access to each containment sump.
- UV inhibitors are included in the material; this is not a universal outdoor-suitability claim.
- The product data states resistance to common acids, alkalis and hydrocarbons. Supply the actual liquid and SDS for confirmation.
- Price, availability, freight and expected despatch timing are confirmed with the quote.
For storing multiple drums, IBCs or equipment across a larger area, compare our portable bunding options. You can also view the complete spill containment and bunding range.
FAQs
Are bunded pallets and spill pallets the same type of product?
The terms describe pallets with a containment sump beneath the container support area. Select the actual configuration using its dimensions, sump capacity, load ratings and chemical suitability.
Does the double-IBC pallet hold more liquid than the single-IBC pallet?
No. This single-IBC model has a 1,300 L sump; the double-IBC model has a 1,100 L sump. Choose containment capacity separately from the number of IBCs the pallet accommodates.
Can I move a loaded pallet with a forklift?
Confirm the exact product and handling arrangement first. The 2-drum and 4-drum models list dynamic loads of 1,000 kg and 1,200 kg respectively. No dynamic rating is specified for these single-IBC and double-IBC models. Forklift access and static load capacity alone do not establish a loaded movement rating.
Are the grates removable?
Yes. All four configurations have removable grating for access to the sump.
How do I check price and availability?
Send your preferred configuration, quantity, delivery postcode and required date. Trade Enviro will confirm price, availability, freight and expected despatch timing with your quote.
