DESMI SPEED-SWEEP OIL RECOVERY SYSTEM

40% LESS RECOVERY TIME. UP TO 36% LOWER RESOURCE COSTS.

High-speed oil recovery that changes the economics of spill response. Reports demonstrate the same volume recovered in 3 rather than 5 days, with up to 36% lower resource costs. Expected 10-year system design life.

SEE WHAT SPEED-SWEEP COULD SAVE YOUR OPERATIONSee how it works
1 Vessel OperationRo-Kite supports a single-vessel configuration
Up to 3 Knots TowingRecover oil while the system advances
20-30 m Sweep OpeningA wider sweep for oil recovery

The cost of standing still

The most expensive oil-spill system may be the one you already own.

Traditional recovery isn’t expensive only because of the equipment. It’s expensive because vessels cost money. Crews cost money. Fuel costs money. And every additional hour oil remains on the water increases the response burden.

Speed-Sweep attacks those costs at their source.

Oil inside the sweep. Recovered while moving.

01

DESMI Speed-Sweep

One vessel · skims while advancing

One-vessel Speed-Sweep arrangementA vessel’s front starboard side connects to the sweep. The boom contains the slick, and a Ro-Kite at the opening pulls outward. An integrated in-line dynamic skimmer recovers oil as the vessel advances.
Front starboard attachment Oil inside sweep Ro-Kite pulls outward · integrated in-line dynamic skimmer
02

Conventional comparison

Two vessels · separate skimming phase

Conventional two-vessel recovery comparisonTwo vessels tow the containment boom around the slick. The comparison sequence contains oil first, then pauses for a separate stationary skimming operation.STOP · SKIM SEPARATELY · RESUME
Containment boom Contained slick Stationary skimming follows

Illustrative operational comparison, not to scale. Actual configuration and operating sequence depend on the system and conditions.

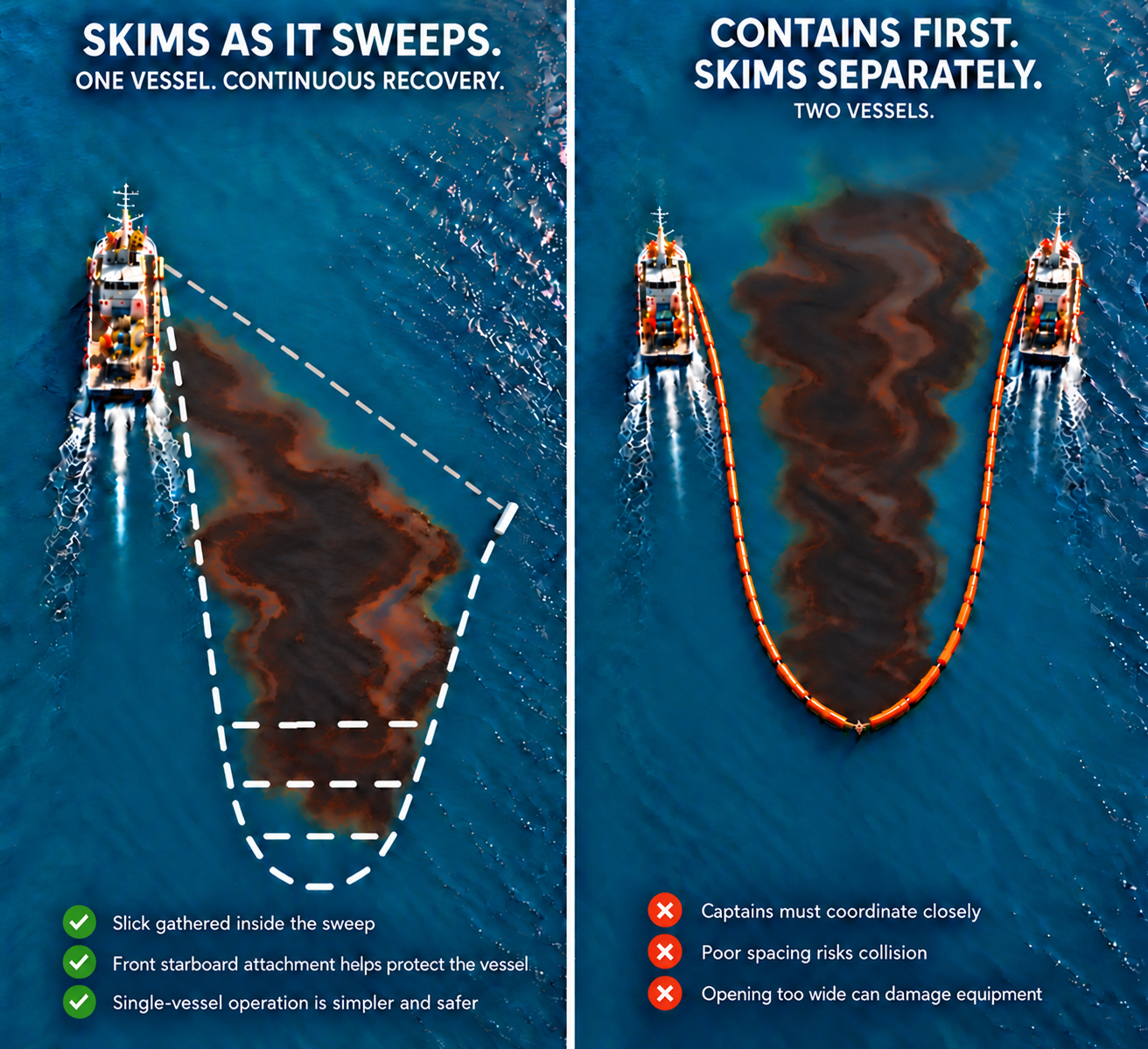

Side-by-side comparison: Speed-Sweep uses one vessel with the slick contained inside the sweep and skimmed while advancing; conventional operation uses two vessels and skims separately. The Speed-Sweep boom attaches at the vessel’s front starboard side.

DESMI Speed-Sweep

SINGLE-VESSEL OPERATION

Towing vesselFront starboard attachment
Skims while advancing

The boom attaches to the vessel’s front starboard side, not astern, helping protect the vessel from oil exposure. Oil is gathered inside the sweep and concentrated at the apex. Ro-Kite pulls the open end outward, while the integrated in-line dynamic skimmer recovers oil as the vessel advances.

Traditional operation

TWO-VESSEL COMPARISON

Towing vesselsTwo captains must coordinate
Stop · skim · resume

Two-vessel operations need experienced captains working in close coordination. Poor spacing can bring vessels together or make the opening too wide, risking collision or equipment damage. Single-vessel operations are simpler and safer. In the conventional sequence, vessels stop for stationary skimming, then resume sweeping.

Lower operational risk and liability

Fewer people on the vessels and a significantly shorter response time reduce operational risk and liability.

Keep ports and shipping lanes moving

Faster operations mean shipping lanes and ports are affected for less time. Shutting a port or shipping lane for 5 days is extremely costly: revenue is lost and disruption is caused.

Significant maintenance and service savings

Less boom is required. The integrated in-line dynamic skimmer and multi-purpose power pack bring significant maintenance and service savings.

Actual resources, configuration and outcomes vary by incident and operating conditions.

5 days → 3 days40% less recovery time

2 vessels → 1Single-vessel Ro-Kite capability

Up to 3 knotsRecover oil while advancing

DESMI comparison resource-cost index: 390 to 250 (relative points, not dollars). That is up to 36% lower resource cost.

Testing. Data. Case studies.

Proven technology. Real-world response.

From testing to operational deployment, DESMI has developed Speed-Sweep with the needs of spill responders in mind.

International deployments

From New Zealand to Singapore

Speed-Sweep systems are used by maritime authorities, oil companies and response operators.

Flat equirectangular world map with country borders and indicative red location markers.
Country-level markers are indicative only – not exact installation sites or one marker per system. Map: Wikimedia Commons (public domain, CC0).

Tested

DESMI documents testing at OHMSETT.

Developed with responders

DESMI reports development and testing with NOFO.

In operation

DESMI has reported international Speed-Sweep deployments.

Sources: DESMI and NOFO · Abu Dhabi sea trials · Southampton demonstration

Hope is not a response. Capability is.

When a spill occurs, your response capability determines the outcome. The right equipment in the right hands can mean the difference between a controlled incident and a costly environmental disaster.

How it works

One vessel. A wider sweep.

The boom connects at the vessel’s front starboard side. Its permeable screens and integrated in-line dynamic skimmer deploy with it. At the open end, Ro-Kite pulls outward to widen the sweep. The single vessel advances while the skimmer recovers oil.

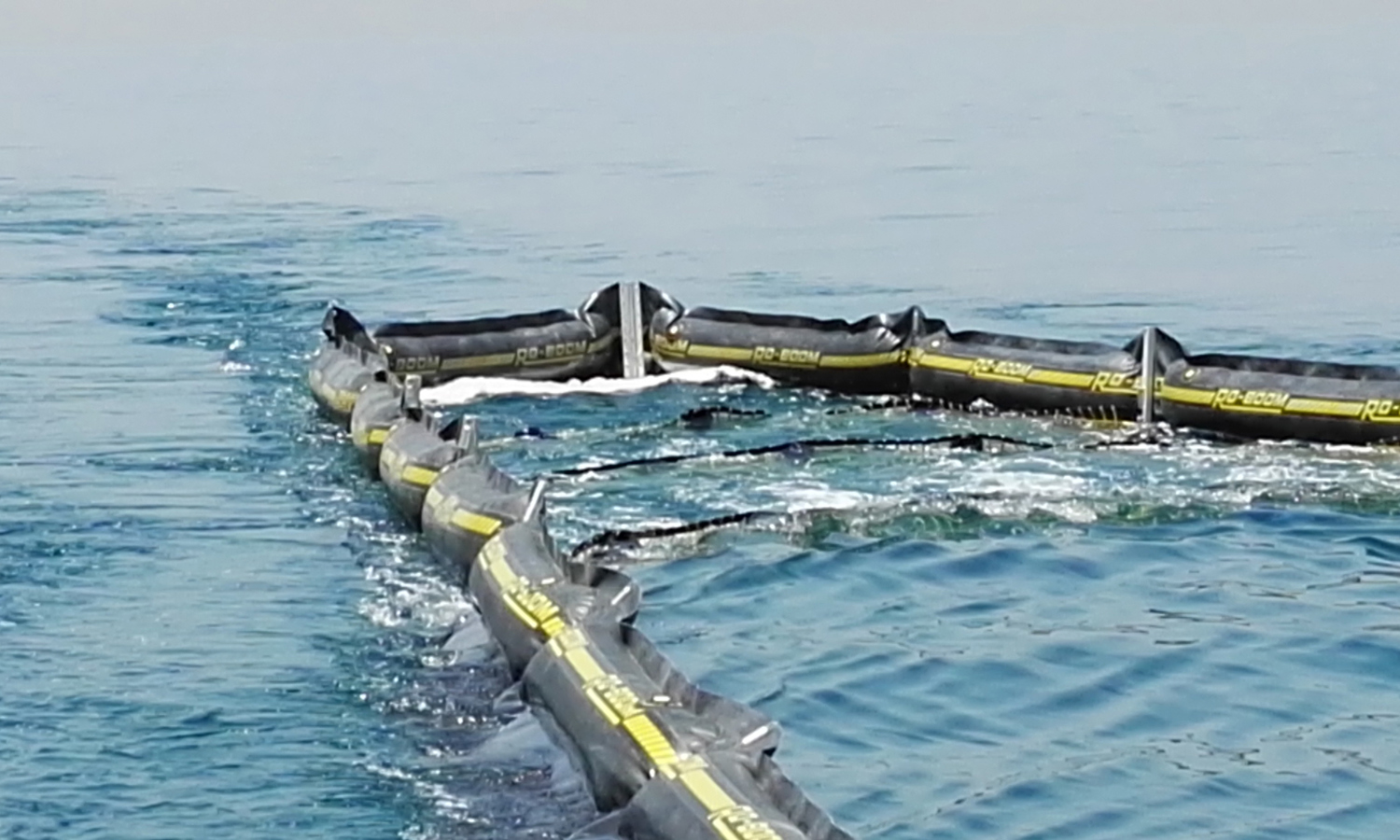

DESMI Speed-Sweep boom deployed on open water
A Speed-Sweep system deployed on open water. Photo: DESMI.

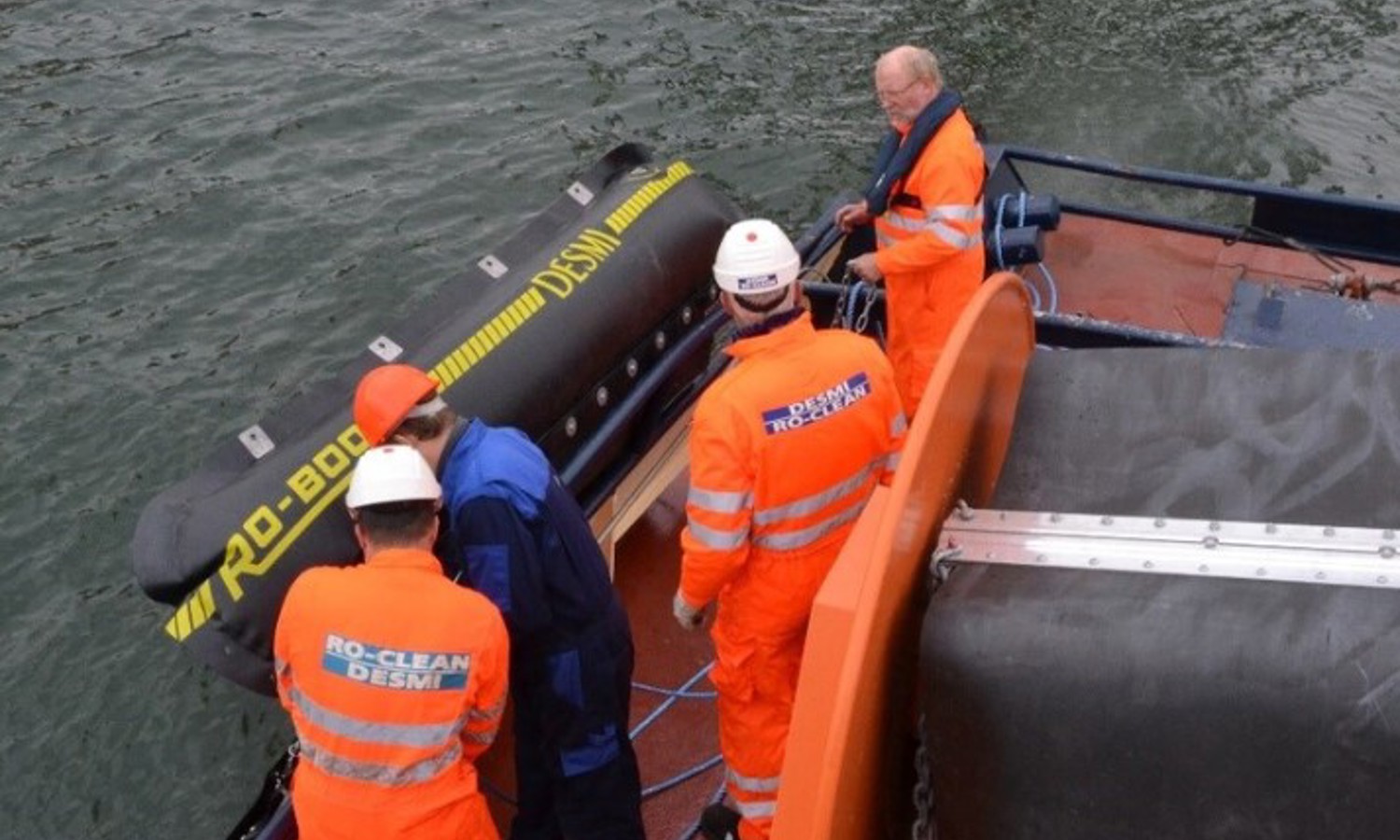

DESMI crew handling oil containment boom aboard a response vessel
Crew handling the boom aboard a response vessel. Photo: DESMI.

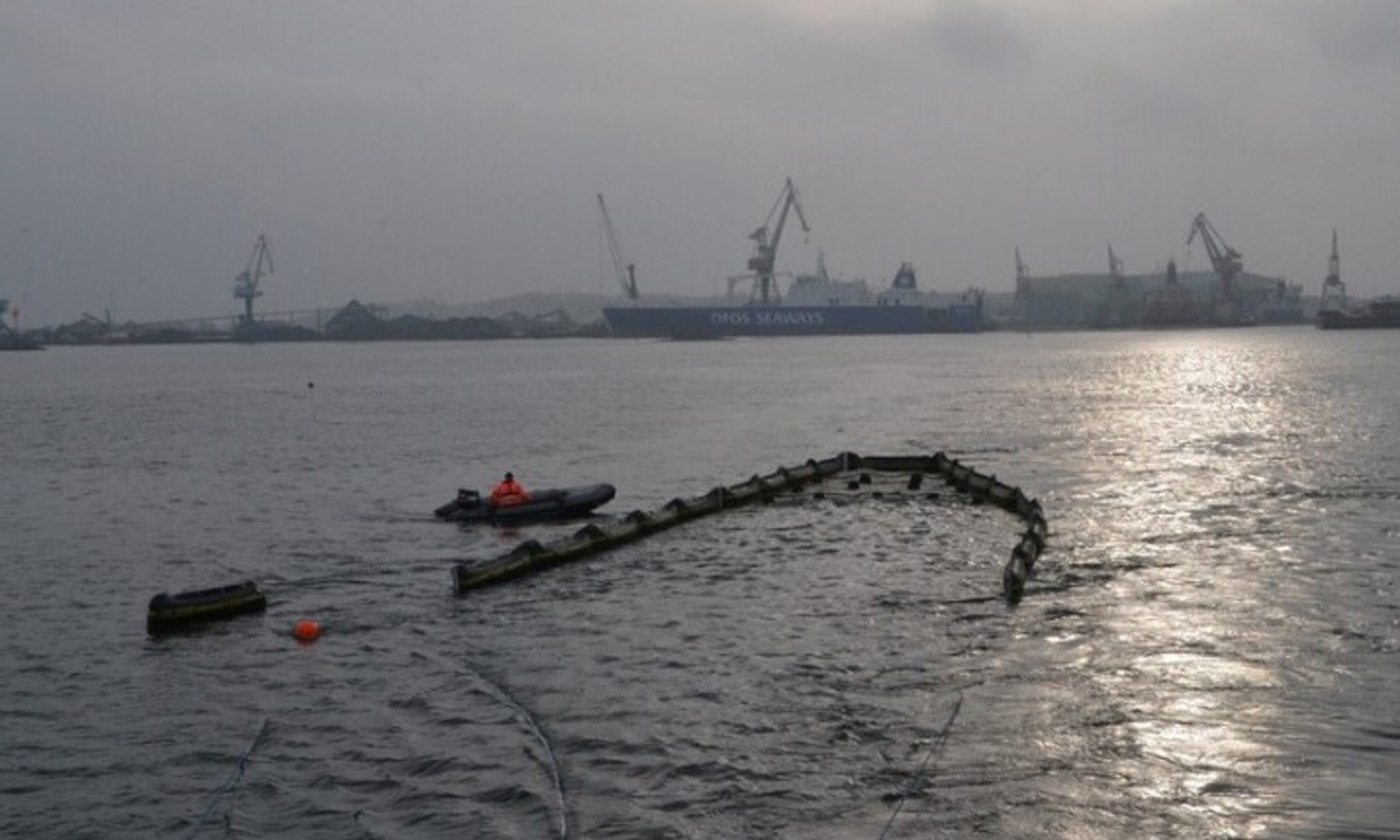

DESMI oil recovery boom deployed on water with a response craft
A deployed sweep forming its collection area on water. Photo: DESMI.

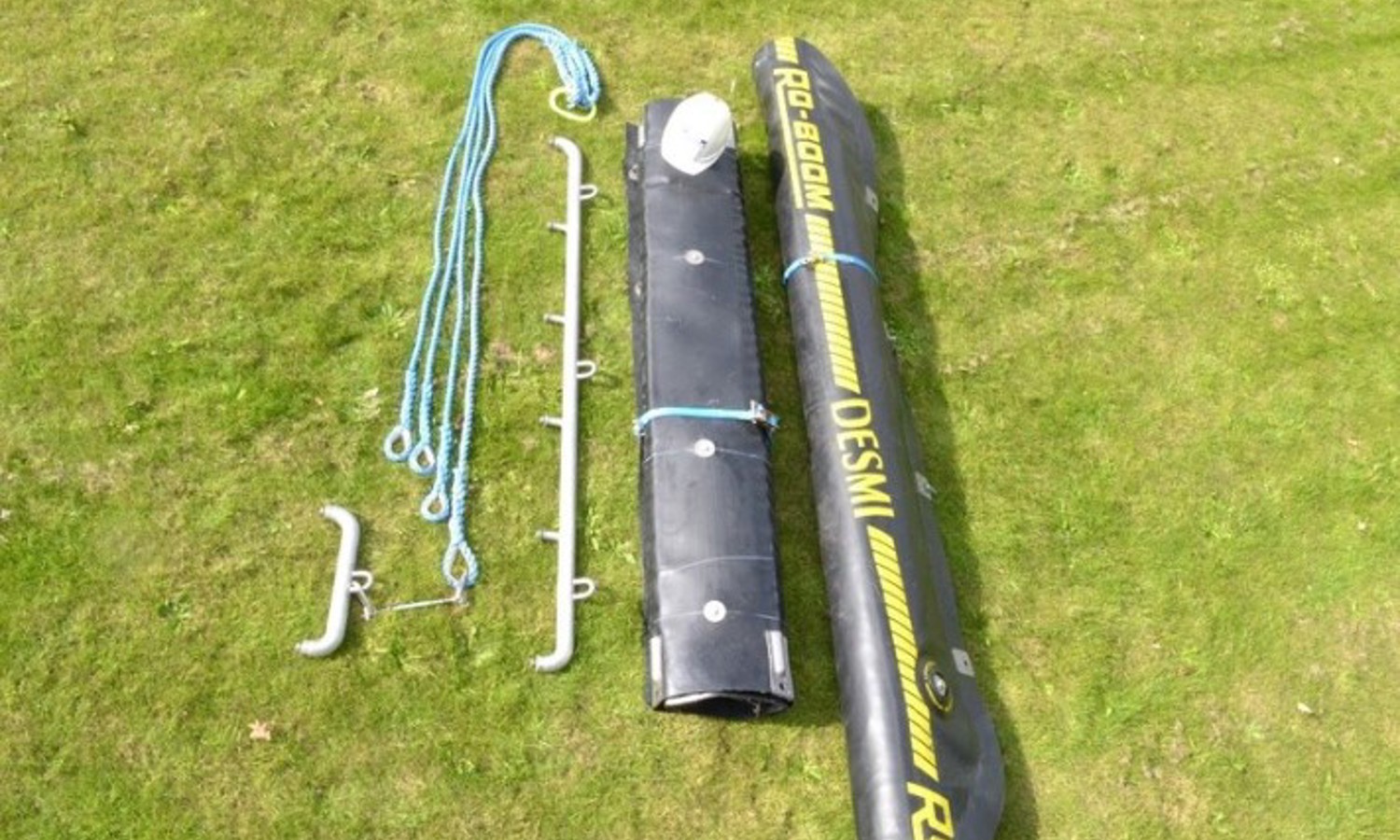

DESMI boom section and towing equipment laid out before operation
Boom section and towing equipment before deployment. Photo: DESMI.

Plan around your operation

Put Speed-Sweep to work in your response plan.

Ready to strengthen your response capability? Talk with Trade Enviro about a Speed-Sweep system for your vessel, operating area and recovery requirements.
