PORTABLE WASH BAY SYSTEMS
Portable & Mobile Wash Bays for Workshops, Fleets & Temporary Sites
Need a wash bay without building a permanent concrete system? Trade Enviro supplies portable wash bay solutions for trucks, fleet vehicles, plant & heavy equipment washdown, helping sites capture and manage wash water, sediment and contaminants. Ideal for depots, workshops, project sites, remote locations and temporary compliance requirements.
Standard and custom sizes
Nominal mats from 6 × 4 m to 18 × 6 m, plus custom configurations.
Typical 14-day lead time*
Around 14 days before despatch, subject to configuration and availability.
Configured for your vehicles
For fleet vehicles, trucks, plant and equipment after configuration review.
Practical site setup
Customer-installable on a stable, compact surface; concrete is preferred.
Configured for your site
Confirm the right portable wash bay before ordering
Send us the vehicle or equipment type, site photos, available footprint, surface, wash frequency and water-management pathway. We’ll confirm the mat size and grade, access equipment, pump, accessories, freight and configured price.
Typical lead time: around 14 days before despatch.* Conditions apply; timing is confirmed with your quote and depends on configuration and current availability. Need it in a hurry? Talk to us: 0434 314 803.
Trusted by organisations across Australia
How a Portable Wash Bay Works
Unlike a standalone containment mat, a portable wash bay can be configured with ramps, wheel tracks, spray curtains and a screened transfer pump to suit the vehicles, site and wash-water pathway. Where a pump is specified, captured water is collected from the mat’s lowest point and transferred to a suitable holding, treatment or reuse system.
Relocatable containment for changing sites
Configured for transport yards, fleet depots, construction projects and mobile operations, these systems provide relocatable containment and water transfer where flexibility is required. Standard and custom configurations are available, with Australia-wide supply and straightforward installation on a suitable prepared surface.
Available Configurations
Portable wash bay systems are supplied in the standard nominal sizes below or as a custom configuration. Final usable area, mat grade, access equipment, pump and hose requirements, water-management pathway and other inclusions are confirmed for the customer’s vehicles and site at quote stage.
| Model | Nominal mat size | Construction | Wall Height | Pump and hose kit | Optional access and containment equipment |
|---|---|---|---|---|---|
| TEWMC | 6 × 4 m | Heavy / Super-heavy duty | 100 mm | Configured when required | LV or HD ramps; HD wheel tracks; spray curtains; other site-specific options |
| TEWMCL | 10 × 5 m | Heavy / Super-Heavy Duty | 100 mm | Configured when required | LV or HD ramps; HD wheel tracks; spray curtains; other site-specific options |
| TEWMTS | 12 × 5 m | Heavy / Super-Heavy Duty | 100 mm | Configured when required | LV or HD ramps; HD wheel tracks; spray curtains; other site-specific options |
| TEWMT | 18 × 6 m | Heavy / Super-Heavy Duty | 100 mm | Configured when required | LV or HD ramps; HD wheel tracks; spray curtains; other site-specific options |
| TEWMCUST | Custom | Heavy / Super-Heavy Duty | 100 mm | Configured when required | LV or HD ramps; HD wheel tracks; spray curtains; other site-specific options |

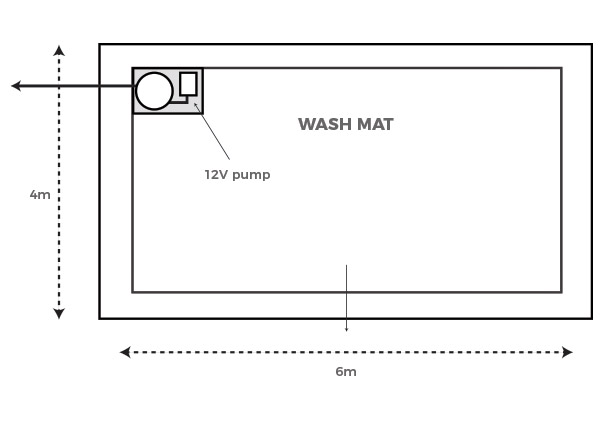

Vehicle Washbay – Basic Containment
- Used for light-duty vehicle or equipment washdown on temporary or low-use sites.
- No treatment or sewer connection
- Bunded vehicle wash mat with perimeter containment
- Small pump for water removal
- Wash water captured for off-site removal

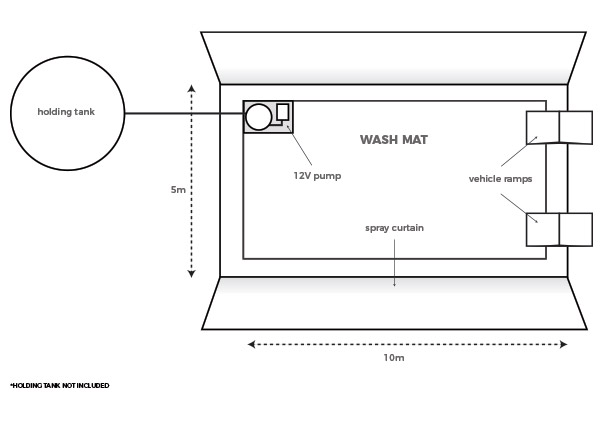

Vehicle Washbay with Holding Tank, Spray Curtains, and Fabricated Vehicle Ramps
- Bunded vehicle/equipment wash mat

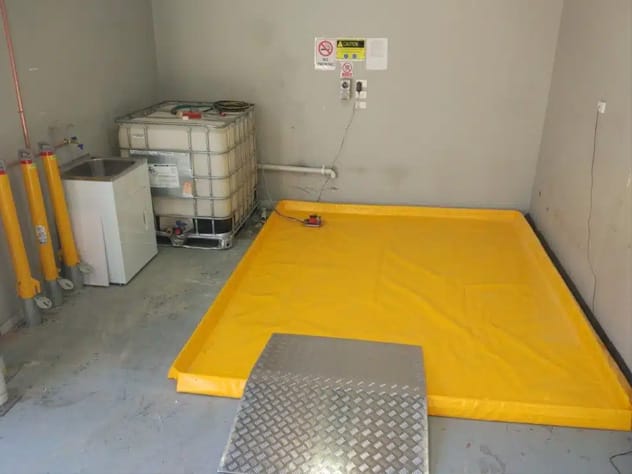

- Pumped transfer to holding tank
- Wastewater removed by a licensed contractor
- Common on construction sites, depots, and fleet operations with regular washdown
- Allows multiple washes between pump-outs

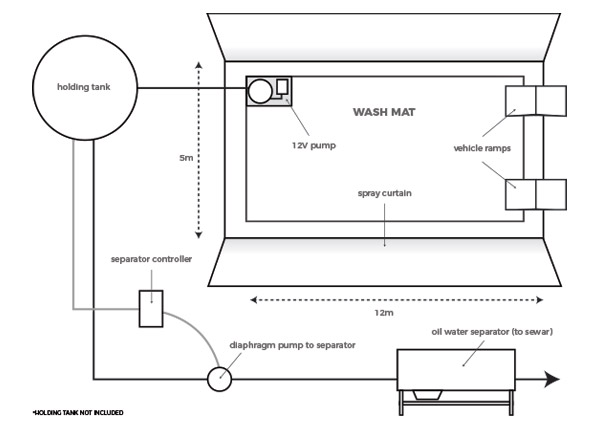

Vehicle Washbay with Treatment (Where Approved)
- Bunded vehicle/equipment wash mat
- Pumped transfer to the treatment system
- Oil–water separation and screening, where required
- Discharge subject to trade waste approval
Typical Applications

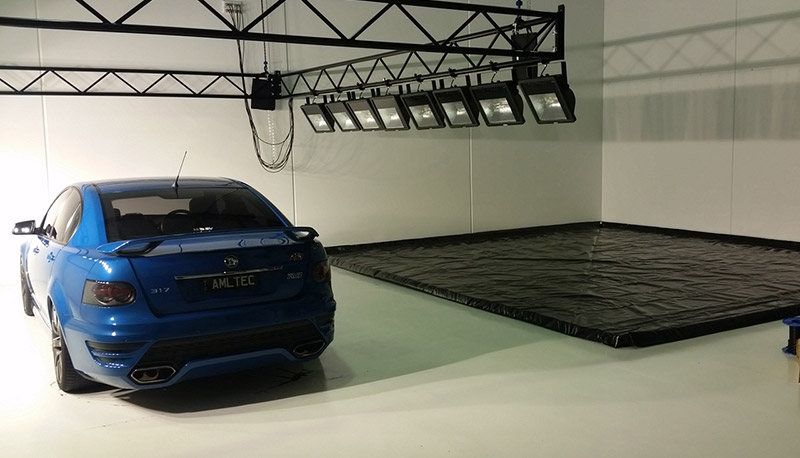

Walkthrough of an installed portable wash bay in an operating automotive workshop.
- Sites without sewer access where wash water is captured for pump-out or off-site treatment
- Fleet and vehicle depots requiring contained washdown without concrete works
- Workshops and detailing facilities preparing vehicles for coating, sale, or inspection
- Light to medium commercial vehicle operations, including trucks, utes, vans and trailers
- Leased or temporary sites where permanent infrastructure is not permitted
Portable Wash Bays for Trucks, Utes & Commercial Fleets
Portable wash bays are commonly supplied for:
- Fleet depots and transport yards
- Workshops and vehicle detailing facilities
- Construction sites requiring contained washdown
- Light to medium commercial vehicles, including trucks, utes, vans and trailers
These systems are designed for vehicle washdown applications where permanent concrete construction is not practical or permitted.
Why Choose a Portable Wash Bay?
Portable wash bays are the smart choice when a permanent solution doesn’t make sense, delivering compliant containment without overcapitalising on infrastructure you may not need long-term.
Fast setup & relocation
Basic components can normally be set up by the customer on a suitable prepared surface. Treatment or discharge integration is assessed separately.
Reusability across sites
Portable format allows systems to be relocated and reused across multiple sites or projects.
Wash water containment
Designed to isolate wash water from surrounding surfaces and stormwater runoff when used as part of a controlled washdown setup.
Application Flexibility
Commonly used for vehicles, workshops, depots, and temporary or leased sites where permanent infrastructure is not suitable.
System Features & Components

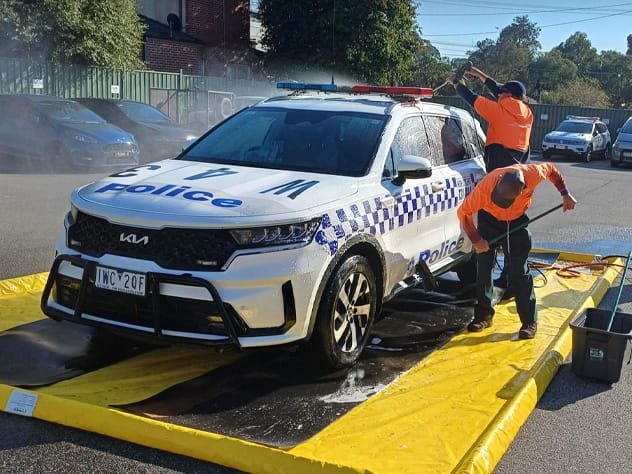

- Vehicle Wash Mat
Heavy-duty drive-over wash mats designed to contain wash water, sediment and contaminants on temporary or remote worksites. - Bund walls & spill containment
Heavy-duty, collapsible bunding forms the wash area boundary and isolates wash water from surrounding surfaces and stormwater runoff. - Ramp and wheel-track access

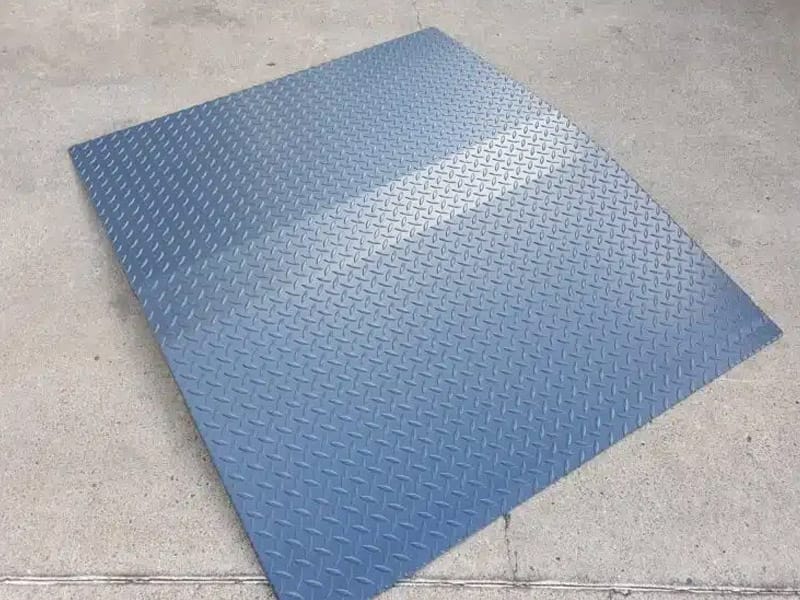

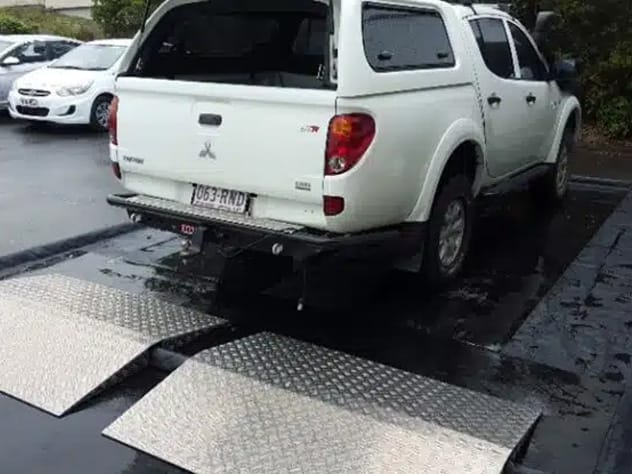

HD wheel tracks are recommended for vehicle use to protect the mat. LV ramps may suit standard passenger and light vehicles; larger vehicles should be specified with HD ramps. Typical HD wheel tracks use durable repurposed rubber conveyor belting approximately 900–1000 mm wide and 10 mm thick, positioned to suit the vehicle track. Provide the vehicle details so the complete access arrangement can be confirmed. - Configured pump and water transfer
A screened 12 V pump and hose kit can be configured where captured water must be moved to nearby holding, treatment or reuse equipment. The detailed pump specification and site requirements are set out below. - Holding, treatment and diversion
Downstream storage, separation, filtration, diversion or reuse is specified for the site. Holding tanks are normally sourced locally to avoid unnecessary freight volume. - Spray curtains & containment accessories

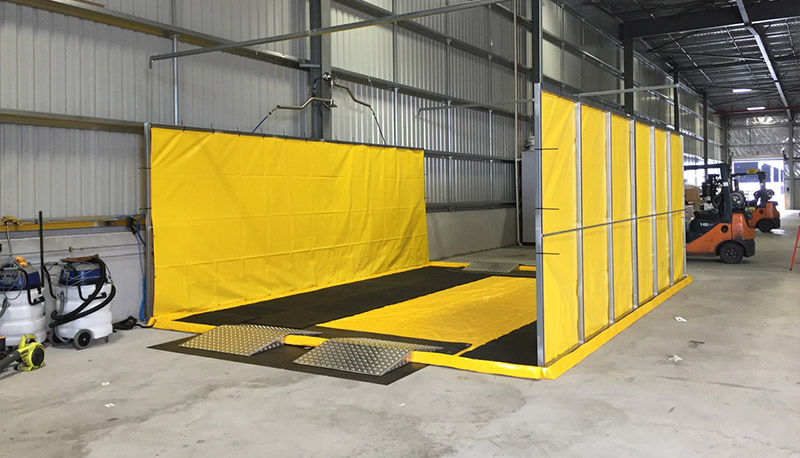

Optional curtains and accessories are used to limit overspray and maintain defined wash areas. - Oil–water separators (optional)
Oil–water separators can be integrated where sewer discharge is proposed, subject to trade waste requirements. - System sizing options
Portable wash bays are available in standard sizes from compact mats through to large-format systems, with configured dimensions confirmed at order stage.
Wash Mat Construction and Material Selection
Portable wash mats are manufactured from PVC or HD PVC with a premium foam-edge bunded perimeter. Heavy and super-heavy-duty configurations are selected according to the vehicles, traffic, prepared surface and intended service.
Material suitability depends on what the wash water may contain. Tell us about any fuels, oils, detergents or chemicals and provide the current Safety Data Sheet where relevant. Trade Enviro will confirm the mat construction and compatibility for the proposed exposure before supply.
Wash Water Management
Portable wash bays are used as part of controlled washdown setups where wash water is captured and managed rather than allowed to enter surrounding stormwater. The way wash water is handled typically depends on whether sewer discharge is proposed as part of site operations.
Sites with sewer discharge
Where sewer discharge is proposed, portable wash bays are commonly used alongside treatment components such as oil–water separators to remove hydrocarbons and sediment prior to discharge.
These systems are typically supplied with product documentation used during trade waste assessment.
Sites without sewer discharge
Where sewer discharge is not proposed, portable wash bays are commonly used to capture wash water for off-site removal or reuse. Typical approaches include:
- Pumping wash water to a holding tank for removal by a licensed waste contractor
- Capturing and treating wash water onsite using reuse or recycling systems
System integration options
Portable wash bay systems are available with a range of integration options, including:
- Suitability for use in low-power or remote operating environments
- Integrated pump options with float control
- Intake screening to manage solids
- Compatibility with treatment, recycling, or storage systems
Pump & Water Transfer

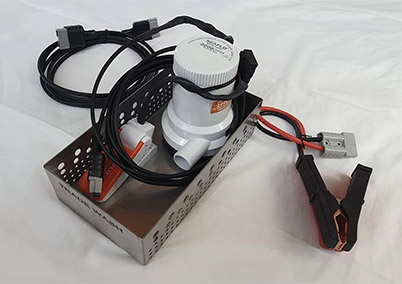

Portable wash bays are commonly configured with the TE12VHD 12 V transfer pump where captured water needs to be moved to a nearby holding, treatment or reuse system. Pump and hose requirements are confirmed in the quote. The pump requires a suitable customer-supplied 12 V power source, and transfer performance depends on the vertical lift and total hose run.
The configured TE12VHD pump and hose kit includes:
- Stainless steel screened intake basket
- Automatic float switch operation
- 3 m waterproof fused power cable with Anderson connector, plus a configured 4 m × 28 mm anti-kink spiral-flex hose kit with clamps
Request Portable Wash Bay Pricing
Portable wash bay pricing varies depending on system size, construction, and the components supplied. Factors that typically influence pricing include:
- Wash bay dimensions and mat grade
- Bund wall height and construction type
- Pumping and water handling options
- Integration with treatment, storage, or reuse equipment
- Accessories such as ramps, curtains, and screening
- Freight, delivery, and site access considerations
*Final pricing depends on size, treatment requirements, and site conditions.
For an accurate portable wash-bay recommendation, tell us the vehicle or equipment type, site location, available surface and footprint, wash frequency, likely oil/sediment load, proposed holding or treatment pathway, and whether ramps, tracks or splash curtains are required. Site photos are helpful.
Discuss Your Site RequirementsWhy Trade Enviro?
No matter your site setup, we design wash bays that work within your constraints, not against them. We focus on helping businesses install the right solution the first time, without over-engineering or unnecessary civil works.
- Compliance-focused design
Systems are configured to support EPA and council requirements relevant to your site, helping reduce approval risk and rework. - Real-world installation experience
We understand how wash bays are used on active sites – from depots and workshops through to temporary and remote locations. - Practical advice, not generic packages
We assess your site layout, vehicle types, and wash water handling requirements before recommending a system. - Built for Australian conditions
Heavy-duty materials, proven components, and support tailored to Australian site conditions and operating environments.
FAQs
Do I need council approval for a portable wash bay?
Some basic portable wash bay setups may not require approval. However, systems connected to trade waste treatment or sewer discharge will usually require council sign-off. Trade Enviro can supply supporting documentation where required as part of the assessment process.
How is wash water managed?
Wash water can be captured for pump-out, transferred to holding tanks, treated onsite, or recycled, depending on site conditions and compliance requirements. The appropriate method is determined based on whether sewer discharge is proposed.
Can portable wash bays handle heavy machinery?
Portable wash bays can be configured for larger commercial vehicles and equipment using a suitable mat grade, HD ramps and protective HD wheel tracks. Because vehicle dimensions, wheel paths and operating conditions vary, provide the vehicle and site details so Trade Enviro can confirm an appropriate configuration. No universal vehicle or axle-load rating is stated on this page.
Can customers set up a portable wash bay themselves?
The basic mat, ramps, wheel tracks, configured pump and hose can normally be set up by the customer on a suitable prepared surface. Time varies with the system size, site access and accessories. Treatment, separator, recycling or discharge connections are assessed separately and may require additional contractors or approvals.
Is the pump included with every portable wash bay?
No. A TE12VHD pump and matching hose-transfer kit are commonly included when the wash-water pathway requires them, but the final inclusions are confirmed in the quote.
What surface is needed?
Use a stable, compact surface free from sharp or penetrable objects. Concrete is preferred. Send site photos if the surface is uneven, unsealed or otherwise uncertain.
Does Trade Enviro supply the holding tank?
Holding tanks are normally sourced locally because they are bulky to freight. Trade Enviro can help specify the wash-water transfer and any required filtration, separation, diversion or reuse pathway.
